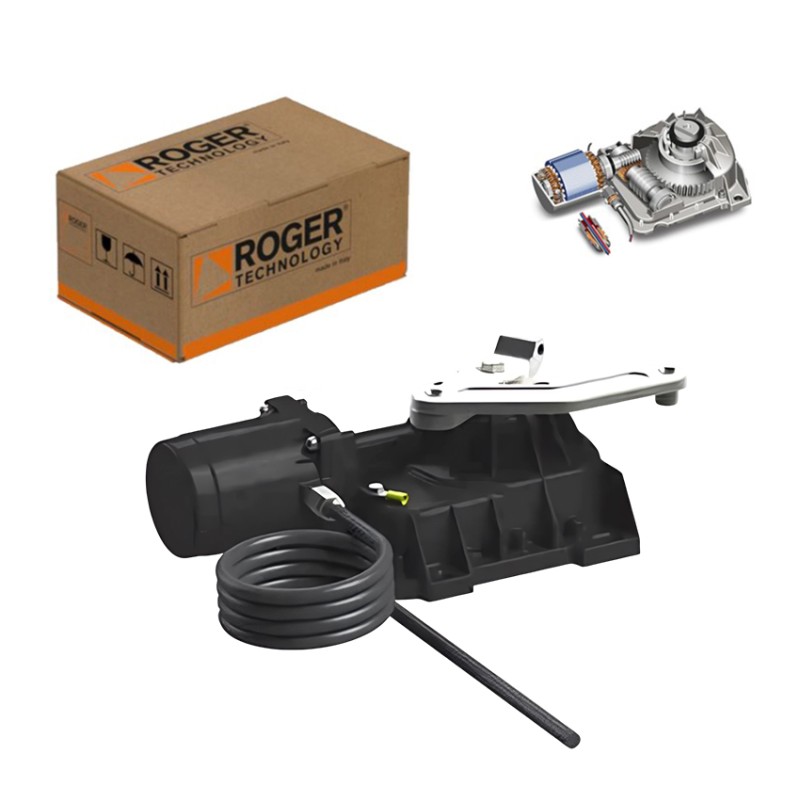

ROGER UNDERGROUND MOTOR R21/362/SUB 230V SWING GATE UP TO 3.5 MT 10 MT LONG CABLE
SUB VERSION WATER RESISTANT
COMPATIBILITY WITH
CAME FROG-A
CAME FROG-E TO ADD ENCODER CODE RTR21/ENC/2
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
Line power supply: 230V AC - 50Hz
Power supply: 230V AC
Nominal power: 200W
Usage Frequency: 30%
Couple: 300 N m
Operating temperature: -20+55°C
Degree of protection: IP67
Type of gearbox: Irreversible
Working speed: 1.2 Rpm
Opening time: 19
Engine protection term: 150°C
Finecorsa: Mechanical
Encoder: Optional accessory
Maximum opening: 105° (optional 125° - 360°)
Length of power cord: 10 m
Bearing on main tree: Standard
Maximum product dimensions mm (L x W x H): 345 x 224 x 144
Packed product weight (Kg): 13,6
