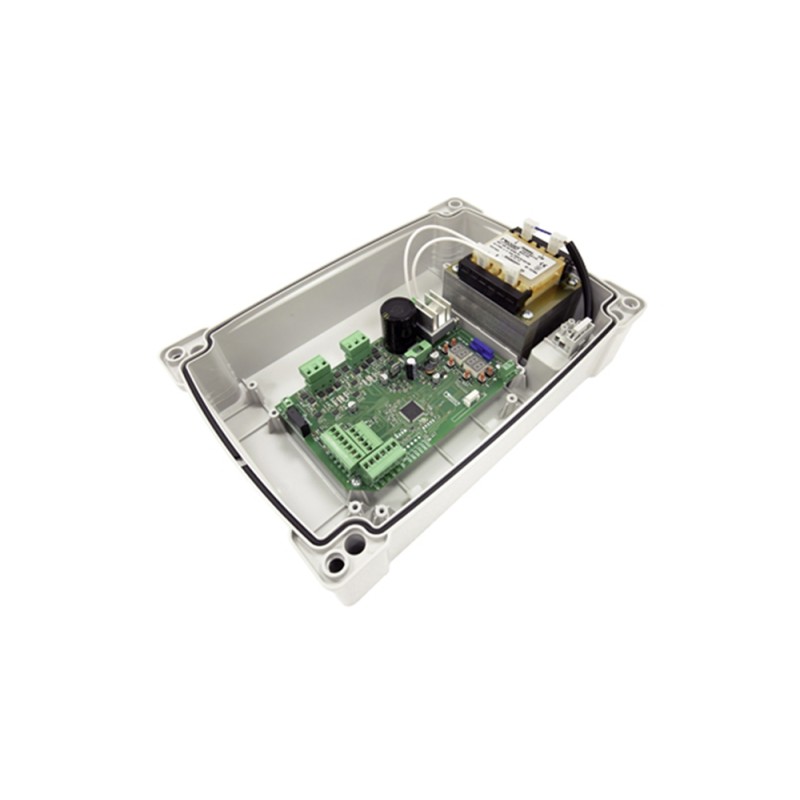

ROGER B70/2ML/BOX CENTRAL DIGITAL CONTROLLER 24V FOR MANAGEMENT OF 2 BRUSHLESS MOTORS, IN PLASTIC CONTENTRY
For MONOS4, BE20/200 actuators, BH23
Number of engines: 2 24 V engines
Maximum force at the start of the manoeuvre
Output auxiliary lighting: 100W 230V AC - 40W 24V AC/DC
Plastic housing
Line power supply: 230V AC - 50 Hz
Operating temperature: -10+55 C°
Degree of protection: IP54
Number of engines: 2 engines Brushless
Max power for motor: 110W
Power max courtesy light: 100W 230V AC - 40W 24V AC/DC
Power max open gate light: 3W (24V DC)
Max output current accessories: 10W (24V DC)
Max electroseing power: 15W (12V DC)
Flashing voltage: 24V DC
Max flashing power: 25W
Battery: Optional
Maximum product dimensions mm (L x W x H): 330 x 230 x 115
Packed product weight (Kg): 4,5
EAN.0615402873741
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
FUNCTIONS:
Automatic movement programming
Force adjustment
Maximum force at the start of the maneuver
Adjustment of obstacle detection sensitivity
Acceleration adjustment (SOFT-START)
Adjustment of opening speed
Adjustment of closing speed
Slow movement control
Braking adjustment (SOFT-STOP)
Function - Adjustment of maneuver time
Function - Automatic closing mode
Adjustment of automatic closing time
Function - Timer
Programming of the output of safety
Function - Safety test (photocell test)
Function - Closing when photocell is released
Function - NC/8K2 safety edge
Function - Emergency stop
Function - Partial opening (Wicket)
Partially opening control
Function - Residential complex
Function - Dead man (Totmann)
Function - Closing guarantee
Function - Additional lighting
Function - Door status indicator
Thermal protection
Battery management
Information on system use
Protection against parameter modification
Reset to factory settings
