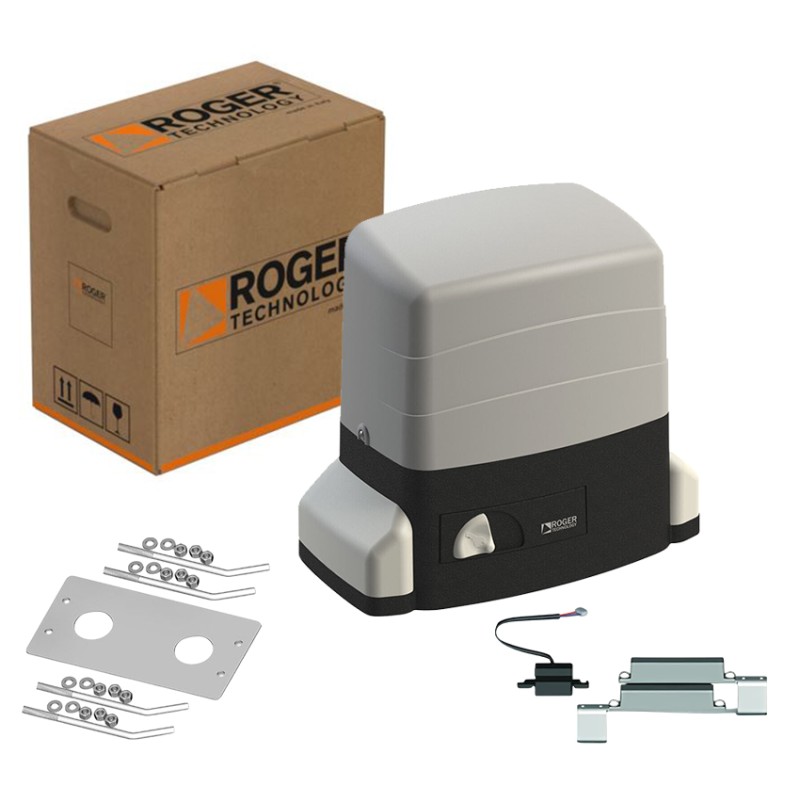

ROGER R30/804 230V SLIDING GATE MOTOR UP TO 800KG OPTICAL ENCODER AND MAGNETIC LIMIT SWITCH
230V AC electromechanical gearmotor, irreversible,
for sliding gates up to 800 kg
built-in control unit on board H70 series and optical encoder
Complete with fixing base with tie rods and magnetic limit switch
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
MAX gate weight: 800 kg
Line power supply: 230V AC - 50Hz
Stand-by consumption: ≤ 0.5W
Motor power supply: 230V AC
Rated power: 350W
Use frequency: 50%
Thrust: 500N
Operating temperature: -20+55°C
Protection rating: IP44
Type of gear: Irreversible
Operation speed: 9.5 m/min (0.16 m/s)
Motor thermal protection: 150°C
Built-in capacitor: 15 µF
Limit switch: Magnetic
Control unit installed on board: H70/104AC
Encoder: Optical
Output gear type: Z17/mod 4
Maximum product dimensions mm (L x W x H): 325 x 162 x 294
Packaged product weight (Kg): 15.4
