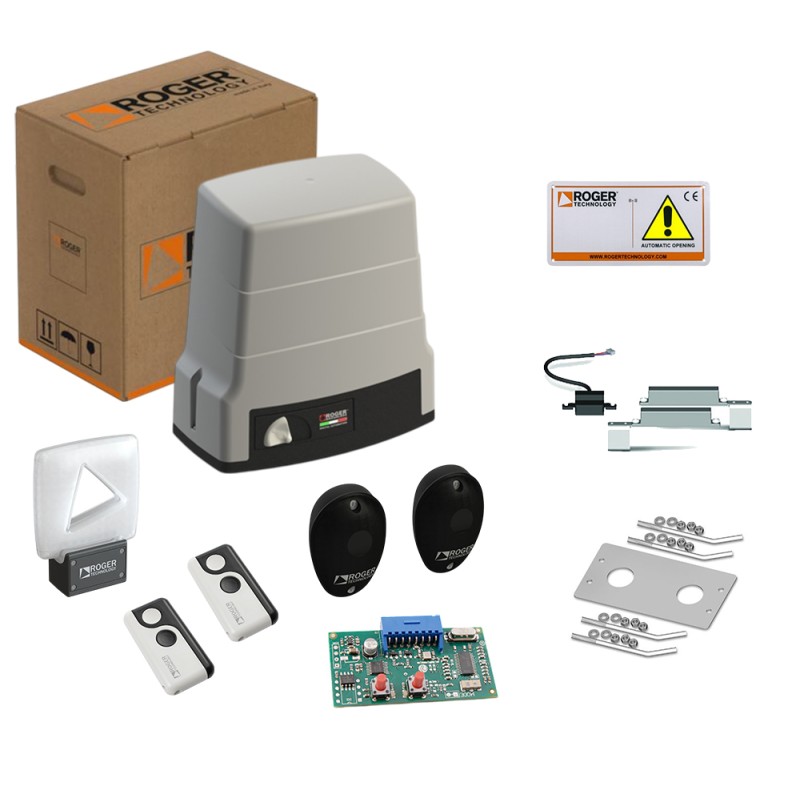

ROGER KIT H30/646 230V SLIDING GATE UP TO 600KG OPTICAL ENCODER AND MAGNETIC LIMIT SWITCH
KIT CONSISTS OF.
N. 1 – H30/644 Electromechanical motor 230V up to 600 kg optical encoder and magnetic limit switch
N. 1 – H93/RX20/I 2-channel plug-in radio receiver 433.92 Mhz. (50 storable codes)
N. 2 – T80/TX2 Bi-code radio control (fixed code or rolling code mode), 433.92 MHz, 2 channels
N. 1 – R90/F2ES Pair of synchronized outdoor photocells
N. 1 – FIFTHY/230 LED flashing light 230V - 115V with integrated antenna.
N. 1 – R99/C/001 “Automatic Opening” signage
N. 1 - Kt223 fixing base complete with tie rods and screws for m30
N. 1 - MC775 Magnetic limit switch kit
EAN.0615402509459
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
KIT 230V AC irreversible electromechanical gearmotor ideal for sliding gates up to 600 kg with built-in control unit on board H70 series, optical encoder and magnetic limit switch.
MAX gate weight: 600 kg
Line power supply: 230V AC - 50Hz
Motor power supply: 230V AC
Rated power: 240W
Use frequency: 50%
Thrust: 300N
Operating temperature: -20+55°C
Protection degree: IP44
Type of gear: Irreversible
Operation speed: 9.5 m/min (0.16 m/s)
Motor thermal protection: 150°C
Built-in capacitor: 12.5 µF
Limit switch: Magnetic
Control unit installed on board: H70/104AC
Encoder: Optical
Type of output gear: Z15/mod 4
Maximum product dimensions mm (L x W x H): 315 x 165.8 x 329
Packaged product weight (Kg): 12.3
