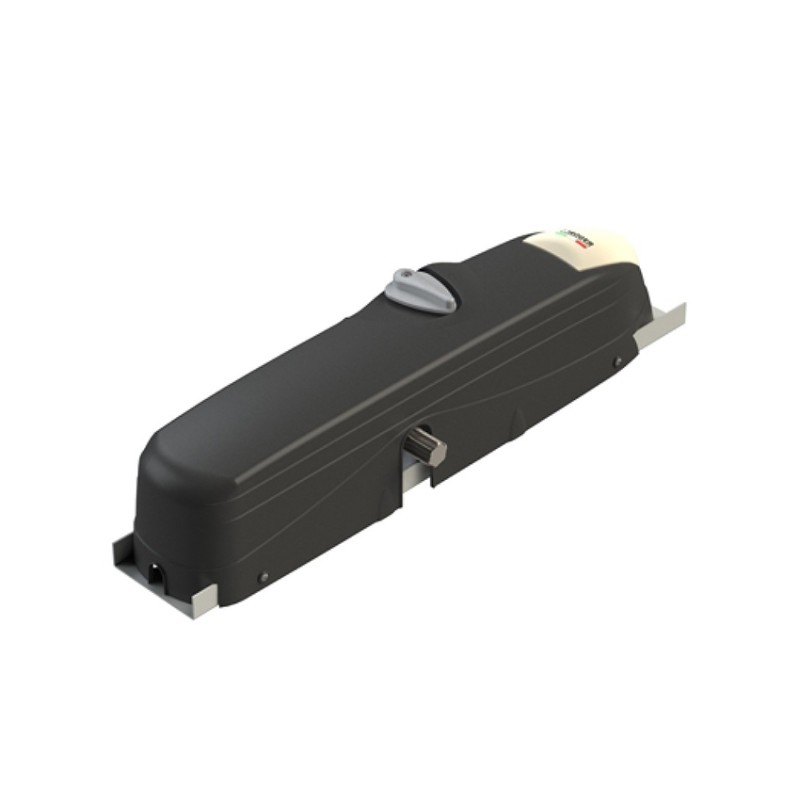

ROGER BR41/831 24V MOTOR FOR OVERHEAD DOORS UP TO 8 SQM, BUILT-IN CONTROL UNIT B70/1B
Maximum capacity size: 8 sqm
Line power supply: 230V AC - 50Hz
Motor power supply: 24V
Rated power: 150W
Frequency of use: Intensive use
Torque: 50 - 380 N m
Operating temperature: -20+55°C
Protection rating: IP40
Type of gear: Irreversible
Operation speed: 1.3 - 2.2 Rpm
Opening time: Adjustable
Limit switch: Microswitch in opening and closing
Recommended digital controller:
Control unit installed on board: B70/1B
Encoder: High-resolution native digital encoder
Output shaft type: Splined shaft z6 UNI 221
Operation cycles per day (opening/closing - 24 hours non-stop): 800
Maximum product dimensions mm (L x W x H): 611 x 178 x 135
Packaged product weight (Kg): 10.7
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
Electromechanical motor BRUSHLESS low voltage, for super intensive use, for swinging doors up to 8 square meters, with built-in central B70/1B, with mechanical limit switch, channeled shaft version.
