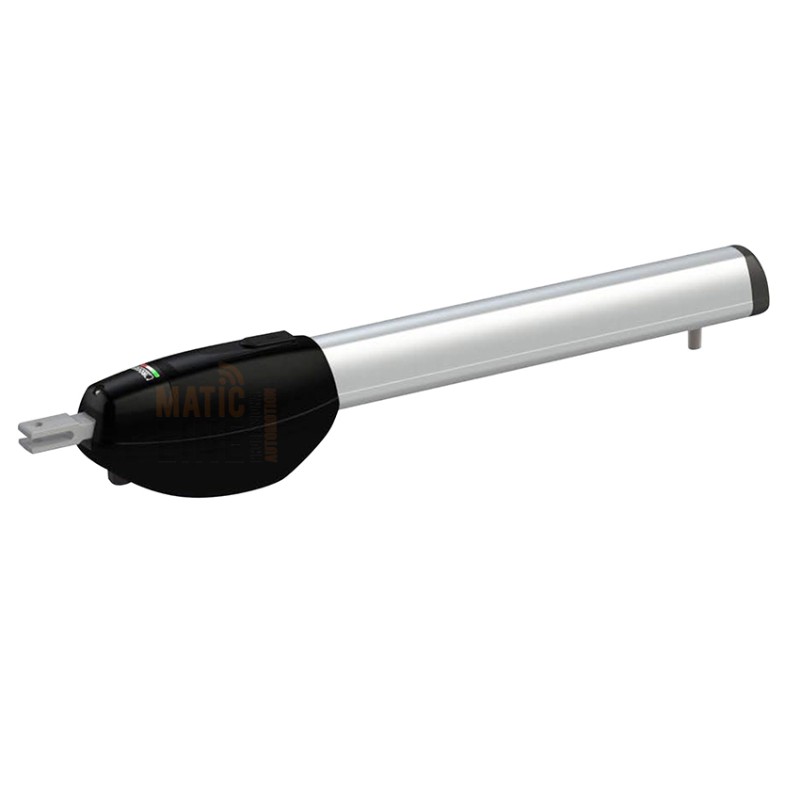

ROGER BE20/200/HS 24V MOTOR INTENSIVE USE WITH ENCODER SWING GATES LEAF UP TO 2.5 MT
BRACKETS INCLUDED
Power supply of the power line: 230 V AC - 50 Hz
Motor power supply: 36V
Power level: 200W
Frequency of use: Intensive use
Thrust: 100-2200 N
Operating temperature: -20°C +55°C
Protection level: IP44
Type of gear: Irreversible
Operation speed: 3 cm/sec
Opening time: 10-15 seconds
Stroke: 400 mm
Limit switch: Mechanical stop on opening and closing
Recommended digital controllers: 230V: COSTA1/SCATOLA - 115V: COSTA1/SCATOLA/115
Encoder: Native digital encoder SENSORLESS 48 PPR
Daily operating cycles (opening/closing - 24 hours non-stop): 800
Maximum product dimensions in mm (L x W x H): 867×105×155
Packaged product weight (Kg): 7.8
