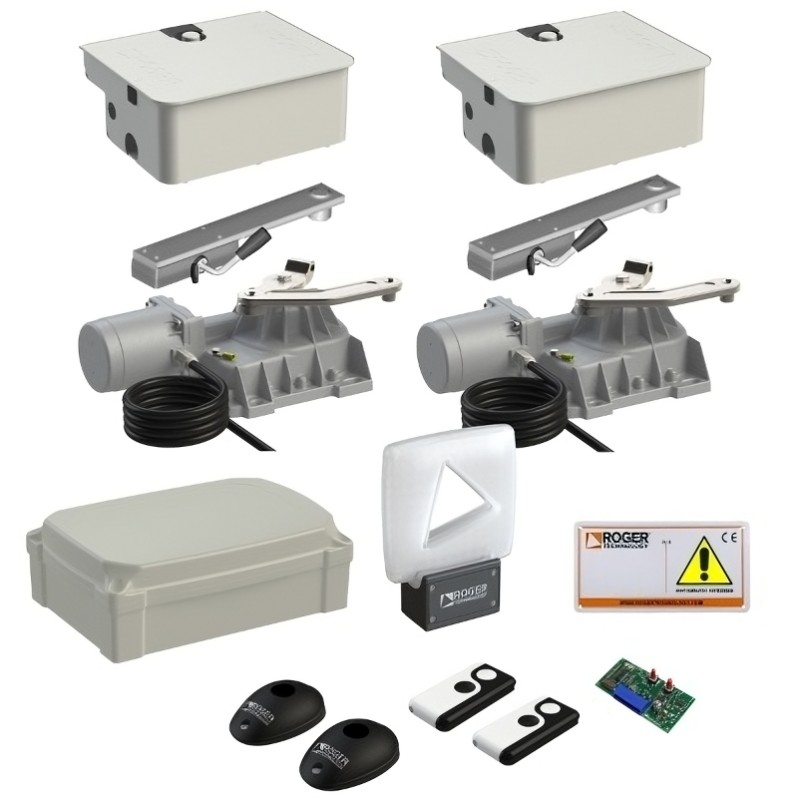

ROGER KIT R21/353 BATTENTE INTERRATO 230V WITH ANTA FINO 3.5 MT
SET 2 electromechanical motors 230V AC, irreversible,
for swing gates with door up to 3.5 m. Standard version with 2 m short cable
with foundation boxes and cold galvanized steel cover and standard lever unlocking system.
Complete with electronic kit.
I'M NOT SURE.
NO 2 - R21/351
Electromechanical motor 230V AC, irreversible, for swing gates with door up to 3.5 m. Standard version with short cable from 2 m.
NO 2 - FU100
Cold galvanized steel foundation and cover.
NO 2 - RL650
Unlock system for standard lever underground motor.
NO 1 - KIT H70/22
Complete electronic kit with H70/200AC control unit for 2 engines, with T80/TX2 remote controls.
NO. 1 - H70/200AC/BOX
Control unit for 2 230V engines AC with slowing functions, in plastic container.
NO 1 - H93/RX22A/I
2-channel fixed-code radio receiver 433.92 MHz (500 memorable codes) for H70, B70, EDGE, CTRL and F70 control units.
NO 2 - SYNUS/2
Two-code radio control (fix code or rolling code mode), 433,92 MHz, 2 channels, with copy function.
NO 1 - R90/F2ES
Couple of external photocells synchronized.
#1 - FIFTHY/230
LED lamp 230V - 115V with integrated antenna.
NO 1 - R99/C/001
Signal table "Automatic Opening".
EAN6615402570114 AND
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
Line power supply: 230V AC - 50 Hz
Power supply: 36V
Nominal power: 200W
Usage Frequency: Intensive use
Couple: 50 - 300N m
Operating temperature: -20+55°C
Degree of protection: IP67
Type of gearbox: Irreversible
Working speed: 1.2 Rpm
Opening time: 19-29
Finecorsa: Mechanical
Recommended digital controller: -
Encoder: SENSORLESS digital native encoder at 48 PPR
Maximum opening: 105° (optional 125° - 360°)
Length of power cord: 2 m
Bearing on main tree: Standard
Maneuver cycles day (open/close - 24 hours non stop): 1300
Maximum product dimensions mm (L x W x H): 345 x 224 x 144
