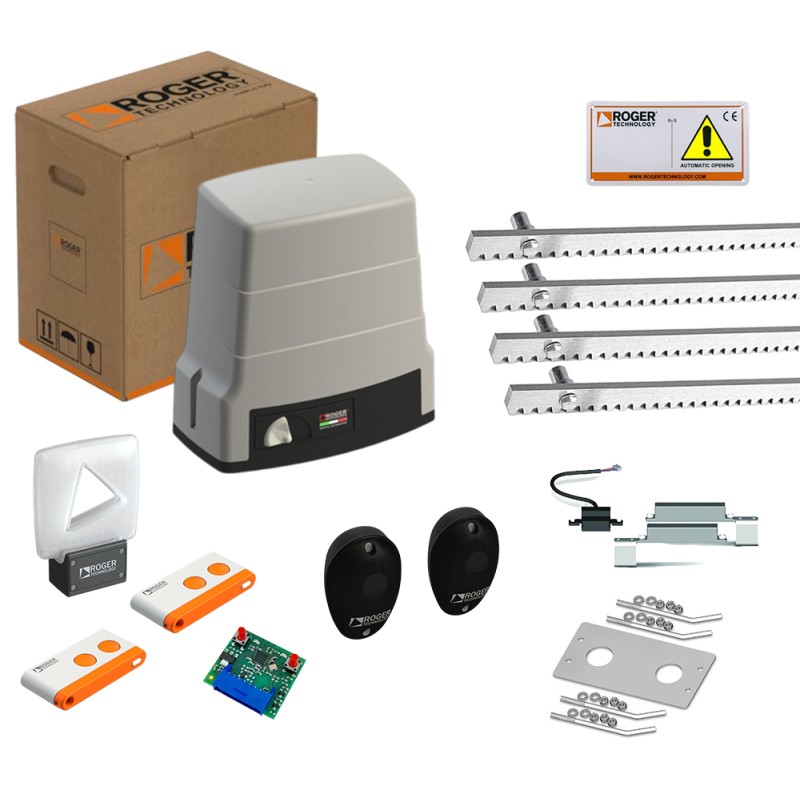

ROGER KIT M30/326 FOR SLIDING GATES UP TO 400KG OPTICAL ENCODER AND MAGNETIC LIMIT SWITCH 4MT RACK
KIT CONSISTING OF.
No. 1 – M30/324 Electromechanical motor 230V up to 400 kg optical encoder and magnetic limit switch
No. 1 – H93/RX20/I 2-channel plug-in radio receiver 433.92 Mhz. (50 storable codes)
No. 2 – T80/TX2 Bi-code radio control (fixed code or rolling code mode), 433.92 MHz, 2 channels
No. 1 – R90/F2ES Pair of synchronized outdoor photocells
No. 1 – FIFTHY/230 LED flashing light 230V - 115V with integrated antenna.
N. 1 – R99/C/001 “Automatic Opening” signage
N. 1 - Kt223 fixing base complete with tie rods and screws for m30
N. 1 - MC775 Magnetic limit switch kit
N. 4MT Rack in galvanized steel
EAN.0615402308106
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
MAXIMUM gate weight: 400kg
Connection voltage: 230 V AC - 50 Hz
Motor power supply: 230 V AC
Rated power: 210 W
Intermittence: 50%
Thrust force: 250 N
Operating safety: -20+55°C
Protection degree: IP44
Motor type: Irreversible
Control speed: 9.5 m/min (0.16 m/s)
Motor thermal protection: 150°C
Built-in capacitor: 12.5 µF
Overload limiter stroke: magnetic
On-board control unit: H70/104AC
Rotary encoder: optical
Output gear type: Z15/mod.4
Maximum product dimensions in mm (L x W x H): 250x165x290
Packaged product weight (Kg): 11.1
Number of boxes per pallet/box: 44
