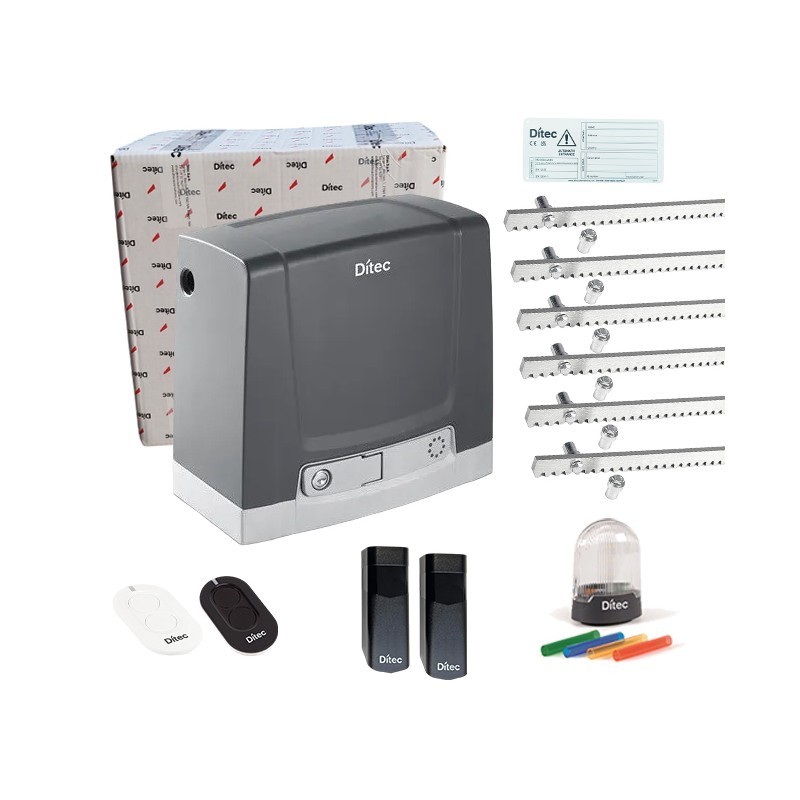

DITEC DITNEOS800GL 24V KIT WITH NEOS 800G OPERATOR FOR SLIDING GATE UP TO 800 KG 6MT RACK
COMPOSITION:
1 NEOS800G 24V OPERATOR
1 CS12MG CONTROL PANEL WITH RCB50E DUAL-FREQUENCY RADIO RECEIVER 433-868 MHz
2 2-CH ROLLING CODE REMOTE CONTROLS (1 X ZEN2 + 1 X ZEN2W)
1 PAIR OF LIN2 PHOTOCELLS
1 FL24 FLASHING LIGHT COMPLETE WITH ANTENNA
6MT GALVANIZED STEEL RACK COMPLETE WITH PINS
1 E409B WARNING PANEL
PROFESSIONAL PRODUCT
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
Technical Specifications
Neos 800 Description
Load capacity 800 kg
Virtual encoder travel management
Maximum opening 20 m
Service class 4 - Intense
Power supply: 230 VAC - 50/60 Hz
Motor power supply: 24 VDC
Current consumption: 1.5 A
Thrust: 800 N inrush
Protection rating: IP 24 D
Operating temperature: -20°C / +55°C (-35°C / +55°C with NIO activated)
DIMENSIONS: 335 x 210 x 307 mm
