Model
|
AJ-HUBKIT-W
IT'S CALLED UBKIT24GW
|
|

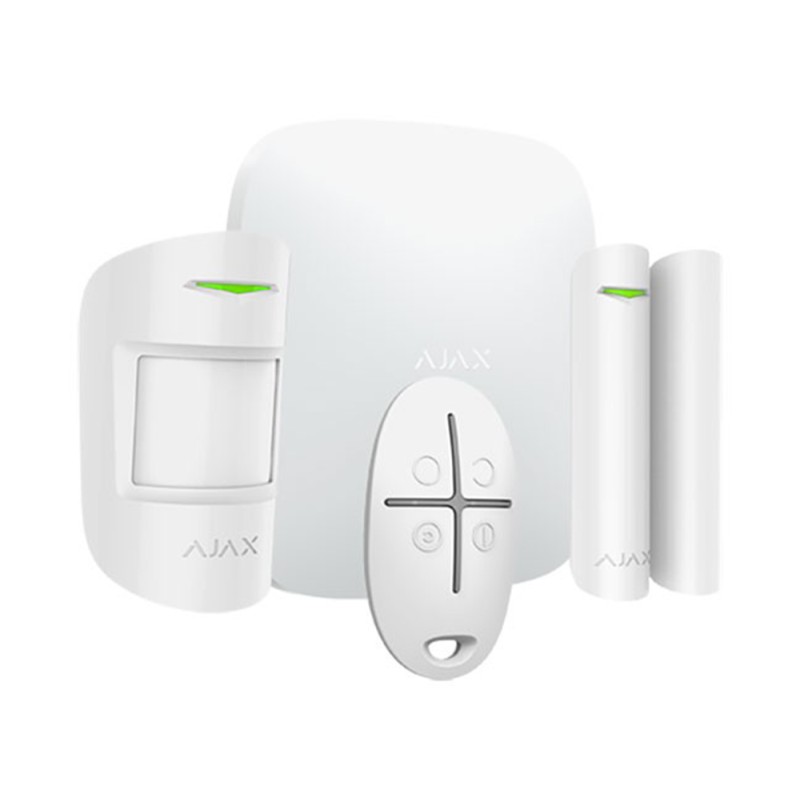

Complete set
|
Wireless Smart Control Panel (Hub) 4G
Wireless Motion Detector (Pir)
Wireless door opening detector
Wireless Keyring
|
|
Maximum number of connected devices
|
100
|
|
Maximum number of users
|
50
|
|
Mobile applications
|
iOS 9.1 and later
Android 4.1 and later
|
|
Alarm signal delivery time
|
0.15 sec max
|
|
Battery life
|
Up to 7 years
|
|
Jeweller radio technology
|
Communication range with central unit - up to 1,700 m in an open space
Bidirectional communication between devices
Operating frequency: 868.0-868.6 MHz
Self-adjustable RF output power - up to 20 mW
Blocks AES algorithm-based encryption
Poultry period of the device: 12-300 s
|
|
Communication channels
|
Ethernet, GSM (850/900/1800/1900 MHz)
|
|
SIM card support
|
Micro SIM 2G
|
|
Power supply
|
Network power supply: 110-240 V
Battery backup: Li-Ion 2 A)h
Up to 15 hours of offline operation with Ethernet disabled
|
|
Integrated video surveillance
|
IP cameras with RTSP - Cloud technology Dahua (beta)
|
|
Dimensions
|
Hub: 165x165x45mm
Pir: 110x65x60mm
Door detector: 90x20x20mm + large magnet: 90x90x20mm, small magnet: 65x12x8mm)
Keychain: 67x37x14mm
|
|
Weight
|
Hub: 235 gr
Pir: 85 gr
Door detector: 30 gr + large magnet: 35 gr, small magnet: 5gr
Keychain: 15 gr
|
|
Storage temperature
|
-30~ +60°C
|
|
Temperature of use
|
0~ +45°C
|
