DITEC NEOS DIT600NESLP AUTOMATION KIT FOR SLIDING GATE UP TO 600 KG
CONTROL UNIT AND BUILT-IN 433 MHz RADIO
INTENSIVE APPLICATIONS
with foundation plate

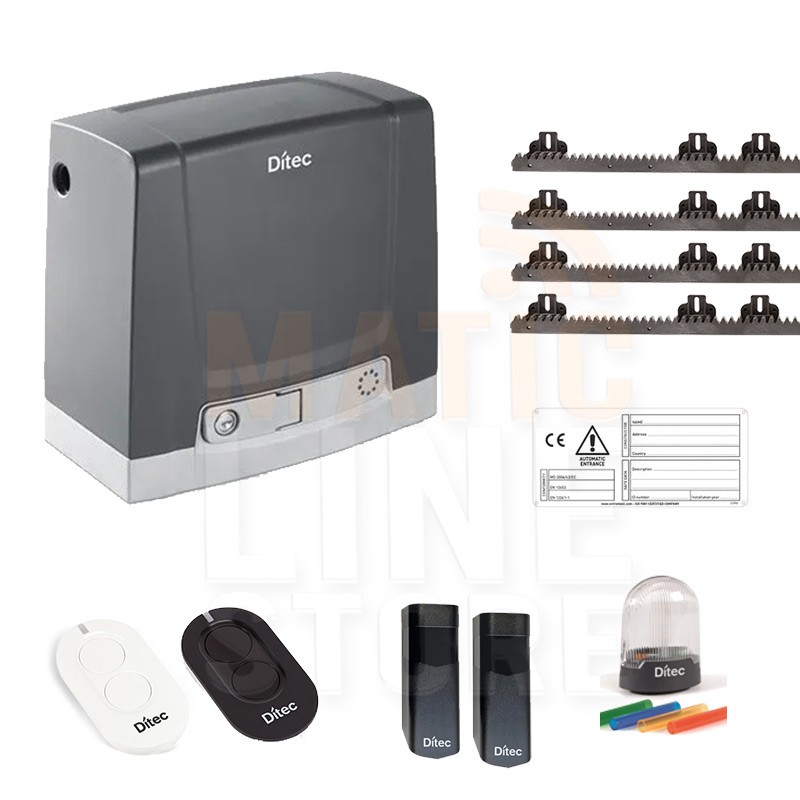

Composition:
1 NEOS NES600EH gearmotor
1 CS12M control panel incorporated with radio receiver
2 2Ch rolling code remote controls (1xZEN2 + 1xZEN2W)
1 pair of LIN2 photocells
1 FL24 flashing light
4 MT plastic rack reinforced with steel
1 E109B warning panel
DIMENSIONS 335x210x307mm
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
Technical features
Description NeoS 600 - NeoS+ 600
Load capacity 600 kg
Virtual encoder stroke management
Maximum opening 20 m
Service class 4 - intense
Power supply 230 Vac - 50/60 Hz
Motor power supply 24 Vdc
Absorption 1.5 A
Thrust 600 N starting
Protection rating IP 24 D
Operating temperature -20°C / +55°C (-35°C / +55°C with NIO activated
THE DITEC NEOS RANGE MEETS ALL RESIDENTIAL AND SMALL TERTIARY APPLICATIONS.
FEATURES.
VERSATILE: DESIGNED TO WORK EVEN IN SITUATIONS OF INTENSE USE AND IN THE MOST EXTREME WEATHER CONDITIONS.
SAFE: POSITION AND SPEED MANAGED IN COMPLETE SAFETY THANKS TO VIRTUAL ENCODER.
AESTHETIC: PLEASANT AND INNOVATIVE DESIGN SUITABLE FOR ANY ENVIRONMENT, THANKS TO THE TWO HIGH-TECH COLORS (GRAPHITE GREY AND METALLIC ALU).
IT HAS PASSED THE INITIAL TYPE TESTS (ITT) ACCORDING TO THE EN 12453 STANDARD.
TÜV EN ISO 13849-1 CERTIFICATION RELATING TO FUNCTIONAL SAFETY.
