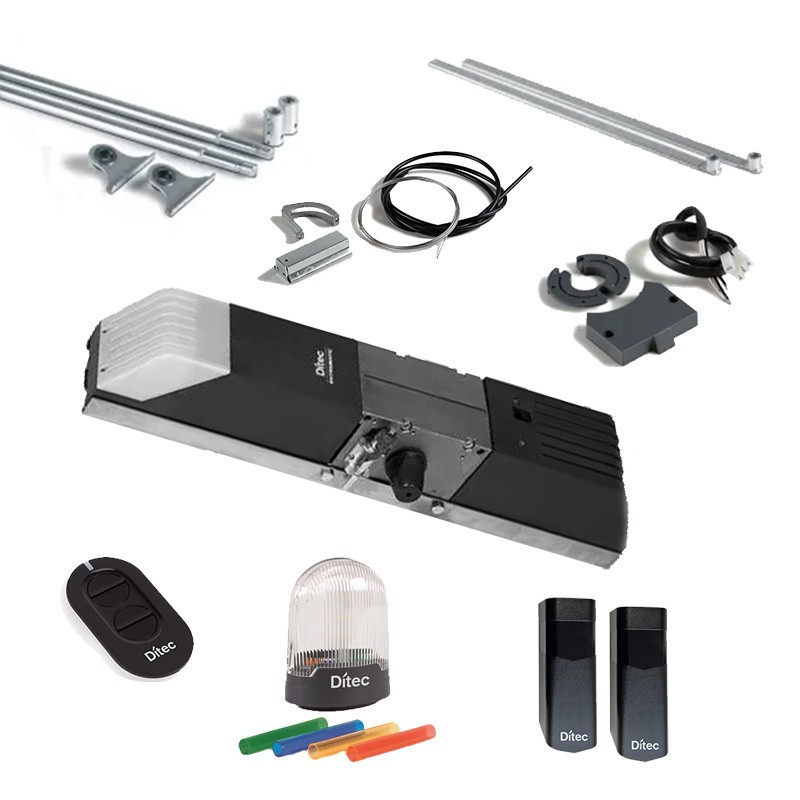

Ditec Box moves both overhead doors counterweights with standard curtain, both fully retractable or articulated doors. Easy to install, it automates doors up to 7 m2 with a single operator and up to 12 m2 with 2 motors in parallel.
Safe: 24 Vdc encoder technology for constant electronic control of impact forces and immediate obstacle detection, ensuring the operator stops or reverses motion (if configured), as well as adjusting the opening and closing speeds.
Ready to use: it is equipped with a courtesy light, a pre-wired fixing base and key release, an integrated control panel with built-in radio receiver and opening limit switches already mounted. Opening button on board.
Rational: designed to allow easy and practical assembly, avoiding any structural modification to the door. The integrated panel and the mounted limit switches make it a product ready for installation.
Easy: simple and quick to program panel via dip switches and trimmers to adjust opening and closing speeds, automatic closing time, and obstacle push.
Versatile: manual release via internal lever or with key from the outside. A return system via metal cord to be connected to the handle on the door is also available (optional).
DITEC ION6B 24V 600KG MOTOR OPERATOR 24V FOR SCORREVAL CANCELLO CONNESSION BLUETOOTH
INTEGRATED COMMUNITY, DIM. 260X195X300MM
DITEC 24V ION 6B
FOR SCORREVAL CANCELLO FINO 600 KG
INTENSIVO RESIDENCES
Integrated LCU50DC control panel
WITH FOUNDATION
Description ION 6B
Capacity 600 KG
ENCODER VIRTUAL racing management
Maximum opening 12 Mt
Frequently tested...
DITEC MOTOR PWR50H 24V FOR SWING GATE 5MT INTENSIVE USE
Complete with fixing brackets
mechanical pin stop (PWRFM) and screw protection dust brushes
Mechanical fixed stroke management
Maximum capacity 800 kg x 1,75 m 280 kg x 5 m
Power supply 24 V
Maximum power 12 A
Absorption 65 W nom. / 288 W max
Push 6000 N
Opening speed 14÷80 s / 90°
Maximum speed 500...
DITEC KIT CUBIC6 230V DITCB230PL FOR COMPLETE UNDERGROUND 2-LEAF SWING GATE ML371
UP TO 7 m, 433 MHz RADIO, IRREVERSIBLE, INTENSIVE USE
(COMPLETE WITH: FOUNDATION BOXES, LEVERS AND RELEASE DEVICES)
Composition:
2 CUBIC6 gearmotors
2 CUBIC6C foundation boxes
1 LCA70 control panel with built-in radio receiver
1 pair of LIN2 photocells
2 2-channel rolling...
DITEC KIT MOTOR PWR 24V FOR CANCELLO 2 ANTE BATTENTI 7MT PWR35HL-ML311
DITPWR35HL CODE
TO CANCEL TO 2 IN FRONT OF KNOCKERS
FINO A 7 Mt (3,5 + 3.5 mt) RADIO 433 MHz
IREVERSIBLE INTENSATION
Composition:
2 PWR35H 24v actuators
1 LCU40H control panel with built-in radio receiver
1 pair of LIN2 photocells
2 remote controls rolling code 2Ch (1 x ZEN2 + 1 x...
DITEC 6OBBI3BH OBBI 24V ACTUATOR MOTOR SINGLE SPARE PART WITHOUT FIXING BRACKETS AND TUBE
for frequent use, 24 V motor, for wings up to 3 m
As it is a spare part, it is supplied as shown in the photo with only the gearmotor, the stem and the rear casing.
The OBBI system does not have a right and a left because the operator is reversible as per DITEC...
DITEC PHOTOCELLS POINT-TO-POINT OPERATION RANGE 7 M 1 PROJECTOR +1 RECEIVER 0CELPR
PLEASE NOTE
THE COLOUR OF THE CABLE MAY VARY DEPENDING ON SUPPLIES
GREY OR BLACK
DITEC COMPLETE KIT FOR 24V UP-AND-OVER DOOR BLUETOOTH GARAGE DOOR DOITBXBL ML304
KIT COMPRISING:
1 BOX 24 Vdc gear motor with RCB100E dual-frequency 433/868 MHz radio receiver and integrated Bluetooth connectivity
BOXFC1 opening limit switch
N°1 4Ch ZEN4 rolling code radio control
N°1 BOXB2C Pair of curved arms
N°1 BOXRCG Set of transmission accessories...
DITEC LCA85 CONTROL UNIT FOR 230V SLIDING MOTORS AND SECTIONAL DOORS
CONTROL PANEL FOR INDUSTRIAL SLIDING DOORS,
ACTUATORS FOR INDUSTRIAL SECTIONAL DOORS AND 230 VAC BARRIERS
Digital control panel for 1 230 VAC motor (3 A power supply) in IP55 box
for sliding gates, industrial sectional doors, 230V barriers
Application
Cross18
Dod14
Please note
433 MHz or...
DITEC ZEN4 433 MHz RADIO CONTROL REMOTE CONTROL WITH WALL BRACKET
KIT CONTENTS
1 ZEN4 REMOTE CONTROL
1 ZENSC WALL BRACKET FOR ZEN2 - ZEN4 REMOTE CONTROL
