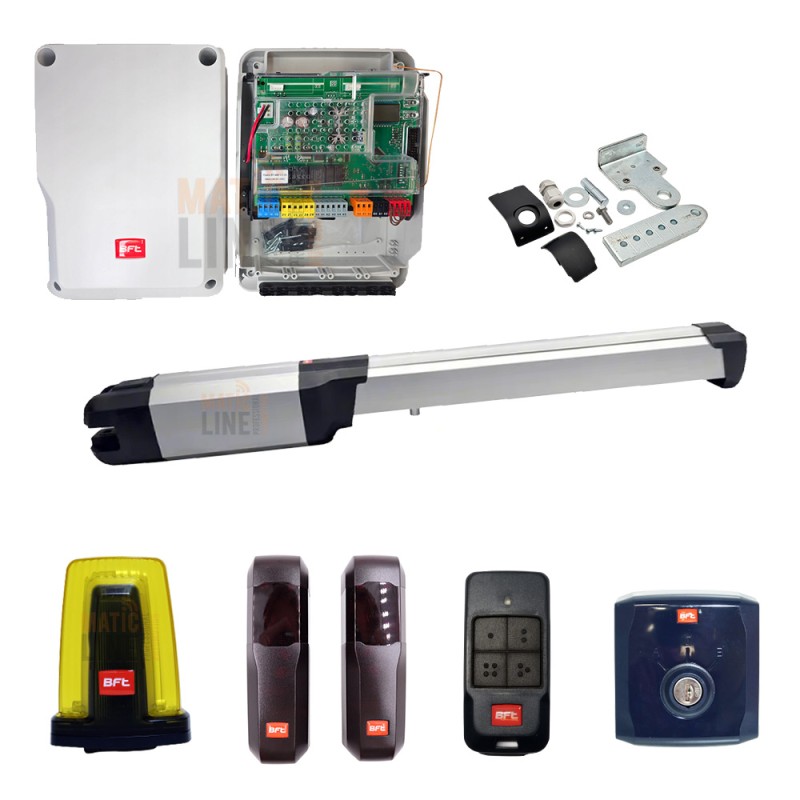

KIT BFT PHOBOS BT B25 AUTOMATION GATE SWING LEAF 24V 3MT 400KG ML054
Nr. 1 irreversible electromechanical operator 24 V PHOBOS BT B25 (max 3 mt and leaf) 2614565
Nr. 1 display control panel for one or two electromechanical operators 24 V THALIA BT A80 2614324
Nr. 1 pair of 180° COMPACTA A20 photocells 2601411
Nr. 1 4-channel transmitter MITTO COOL C4 Range 50/100 m. 2614120
Nr. 1 white LED flashing light with antenna RADIUS BT A R1W 2607539
Nr. 1 anchoring brackets including adjustable brackets SFR. 2x release keys
Nr. 1 q.key selector 2601396
The box contains manuals and certifications
EAN:0615402211482
Security policies
Secure site in SSL certification for the security of your data
Shipping policies
Shipping in 24/48 hours after payment
Return policy
Maximum times for returns 14 days, the goods must return as shipped by us,
Release Personalized key
Maximum angle 119 °
Max. leaf length without electric lock 2 m
Maximum opening cycles per hour 30
Operation time (90°, excluding slowdowns, with maximum leaf and maximum weight) approximately 13 s
Max. leaf weight 400 kg
Card power supply 230 V
Environmental conditions -20 ÷ 55 °C
Type of limit switch Magnetic
Motor voltage 24 V
Control unit THALIA BT A80. ZARA BT A80
Protection rating IP44
Slowdown Yes
Power consumption 40 W
Type Electromechanical swing gate operator
Interconnectivity No
Impact reaction D-Track
Push and pull force 2000 N
Weight of operator 4.8 kg
Block Mechanical
Useful stem stroke 360 mm
Max. swing gate width 3 m
